Used For Vessel Salvage Heavy Moving With Inflatable Marine Rubber Airbag
Advantages of Florescence inflatable rubber airbag
1. New design of anti-bursting construction at the end
2. Optimized structural layout
3. Higher flexibility and damping capacity
Standard specifications of Florescence marine rubber airbag
1> Diameter (D): From 0.3m to 2.2 m.
2> Effective Length (EL): From 6m to24m.
3> Total Length (TL): From 7m to28m.
4> Other specification of ship launching airbags also available upon customer’s request
Working pressure of Florescence marine rubber airbag:
| Type | Diameter | Pressure | marine airbag can load |
| | | | Working hight | Static Pressure load | Dynamic pressure load |
| | | | | | |
| Plan airbag | 0.8m | 0.06mpa | 0.3m | 8 ton | 4 ton |
| | 1m | 0.05mpa | 0.3m | 9 ton | 5 ton |
| | 1.2m | 0.05mpa | 0.35m | 10 ton | 6 ton |
| | 1.5m | 0.05mpa | 0.7m | 12 ton | 8 ton |
| | 1.8m | 0.04mpa | 0.8m | | |
| Slope airbag | 0.8m | 0.06mpa | 0.3m | 9.6 ton | 6 ton |
| | 1m | 0.05mpa | 0.3m | 10.8 ton | 7.5 ton |
| | 1.2m | 0.05mpa | 0.35m | 12 ton | 9 ton |
| | 1.5m | 0.05mpa | 0.7m | 14.4ton | 12 ton |
| | 1.8m | 0.04mpa | 0.8m | 18 ton | 15 to |
| Intertwine airbag | 0.8m | 0.06mpa | 0.3m | 12 ton | 7.2 ton |
| | 1m | 0.05mpa | 0.3m | 13.5 ton | 9 ton |
| | 1.2m | 0.05mpa | 0.35m | 15 ton | 10.8 ton |
| | 1.5m | 0.05mpa | 0.7m | 18 ton | 14.4 ton |
| | 1.8m | 0.4mpa | 0.8m | 22.5 ton | 18 ton |

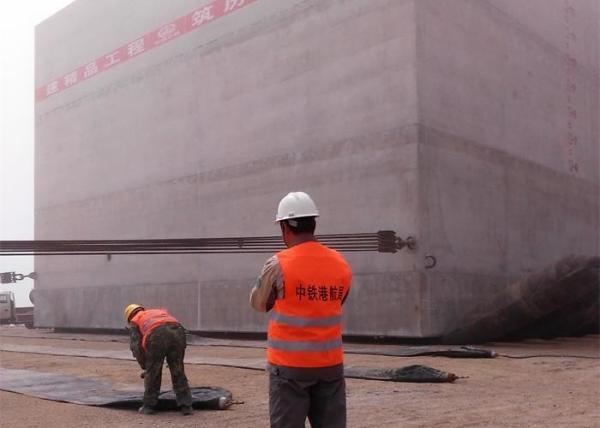

Hoisting and moving airbags: They can be widely used for moving various large prefabricated reinforced-concrete products (such as caisson, box culvert, and bridge), oil drilling equipment and integrated building, etc
Our service
Pre-sale service:Every product will be inspected before shipment,guarantee the quality
On-sale service:Choose suitable package and transportation,gurantee the goods reach to customers safely,save freight for customers
After-sale service:One-to-one VIP service
We solemn promise:
1) Contact with customers statedly
2) Guide the installation and using of products
3) Provide maintenance manual of related products
4) Provide mending material for products
Q1: What’s the material of your products?
A: Our raw material is natural rubber, and rubber-dipped nylon cord fabric
Q2: Are you factory or trading company?
A: Qingdao Florescence Co.,Ltd is the company and factory,located in Jimo City,Qingdao,near to Qingdao port and Qingdao airport,which is convenient for transportation.
Q3: What’s your delivery time and payment terms?
A: Delivery time is according to customers’ size and order qty.The payment terms you could choose are T/T,L/C at sight,Western Union and so on.
